Pulse Ratio 1:10
1 pulse = P10
2 pulses = P20
5 pulses = P50
10 pulses = P100
20 pulses = P200
50 pulses = P500
100 pulses = P1000
Ideal for e-loading & piso wifi vendo machine Ideal for Arcade Machine, Vending machine, Game machine Compact bill acceptor, simple design and exceptional value Easy to update program

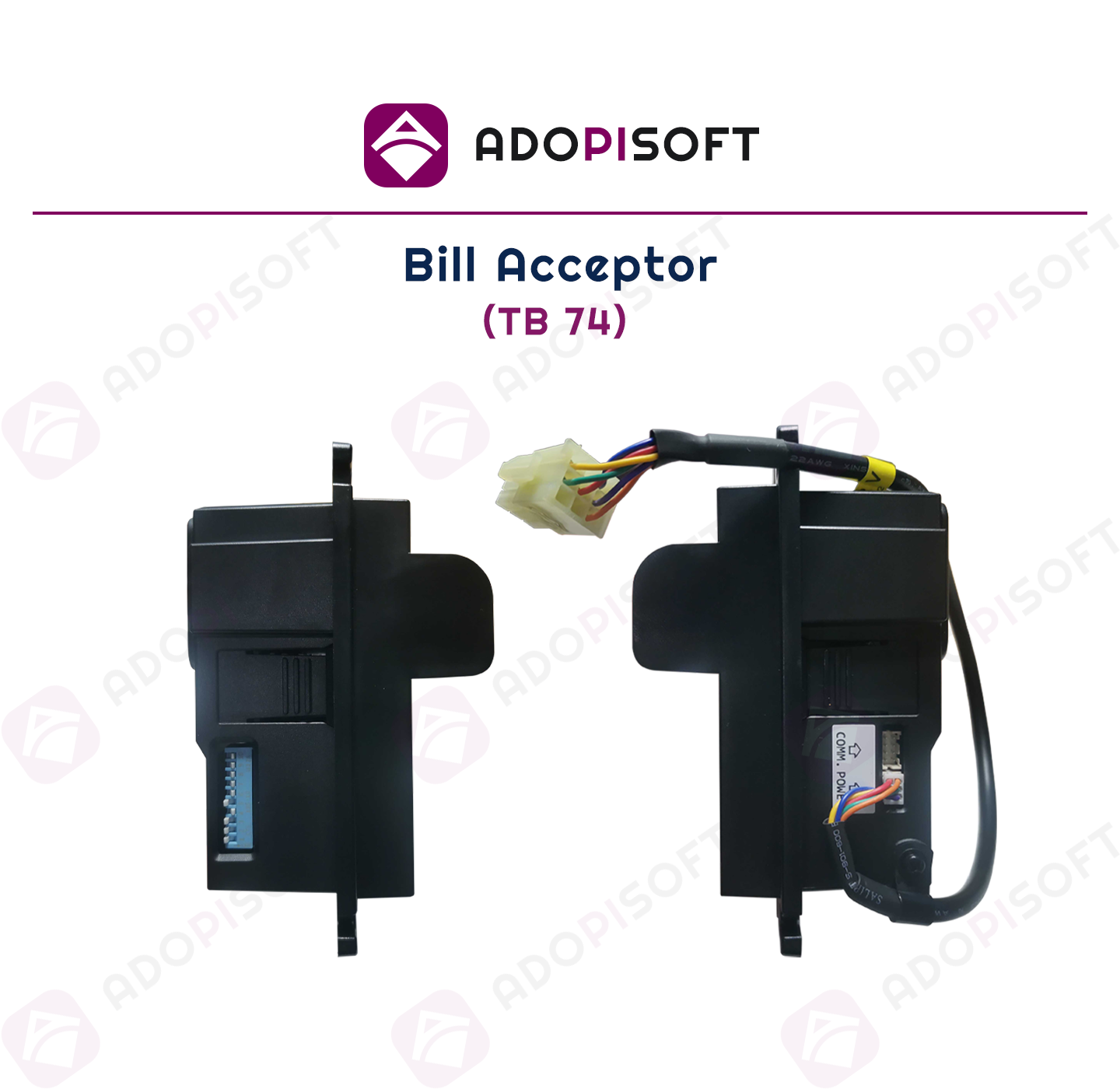

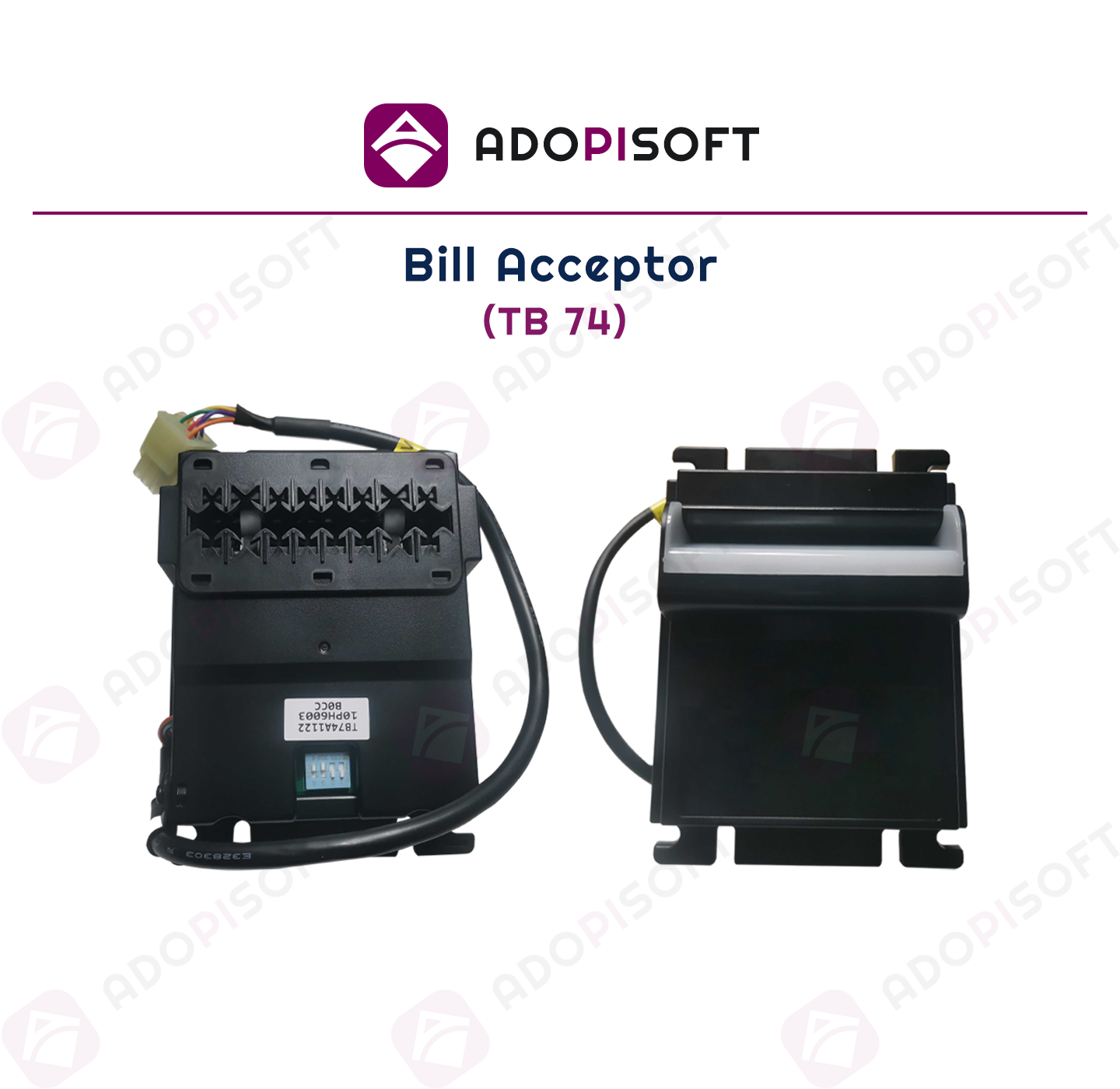

This is the best bill acceptor that can accept over 50 countries' denominations.
WIRINGS:
3 joined black wires - inhibitor (on/off accept bill) Active on Low
1 black wire - GROUND
1 red wire - 12V
1 white wire - credits/pulse
FEATURES:
1. Bill insertion: 4-6 Way Acceptance
2. Acceptance Rate: 96% or greater
3. Interface: Pulse, RS232, RS232AO, ccNet (compatible), MDB
4. Power Sources: DC 12V
5. Environment Range: Operating Temperature: 0° C ~ 55° C
6. Bill Stacker: No cash box/ bill stacker.
8. Weight: 1.40KG/pcs
