DIY Kit Set: USB to LAN with TP-Link Omada Eap110 (RPI Board) 🚀📡
(Note: Not configured yet) ⚠️
Make your own Piso Wifi Vendo with this bundle! -- PLUG & PLAY -- 🚀
(BOX NALANG KULANG MY VENDO KANA) 📦
Includes: 📌 Diagram for connection 📌 Labeled wires/cables for easier assembly
Ideal for individuals who are not technically savvy but want to create their own PISO WIFI MACHINE.

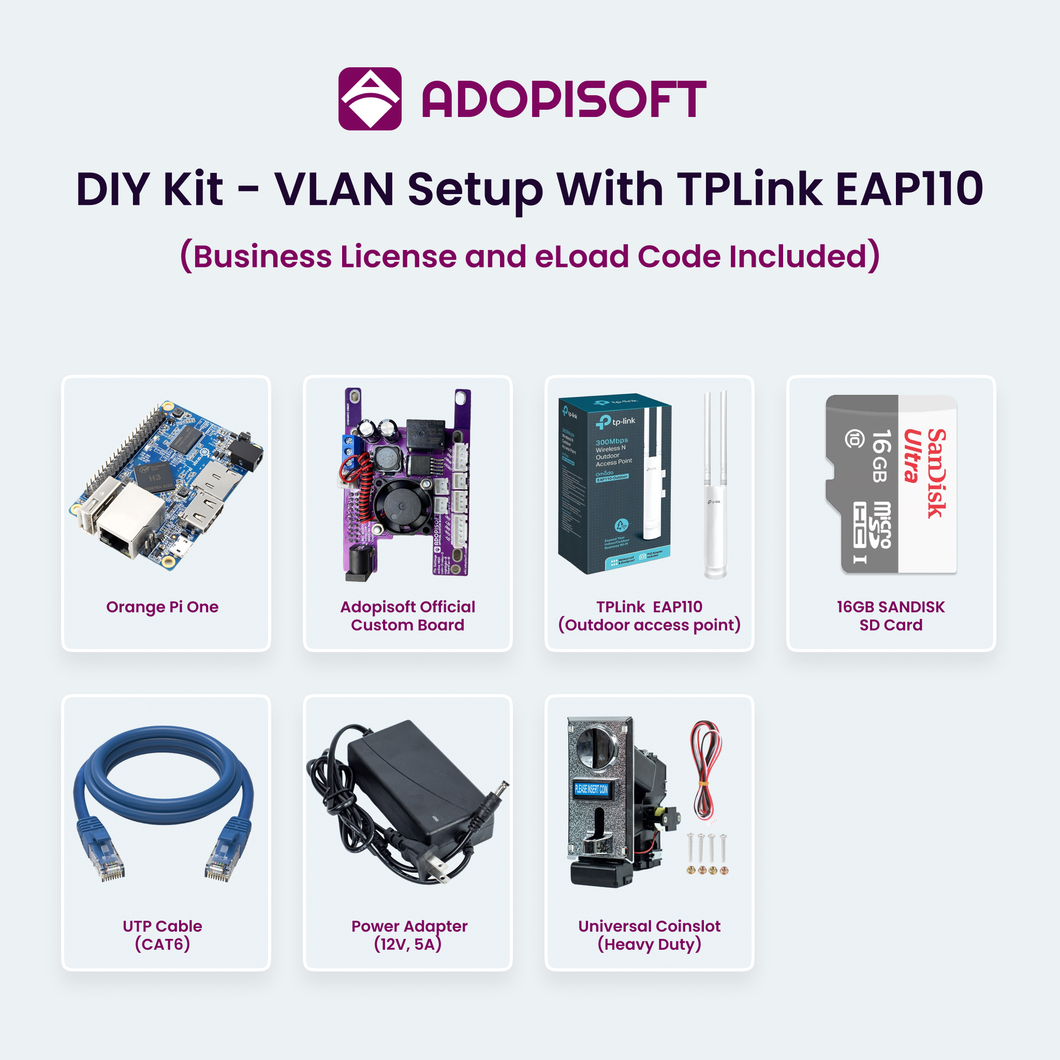

PACKAGE INCLUSIONS:
-
AdoPisoft Regular Wifi License Key 🔑
-
AdoPisoft E-loading License Key 🔑
-
OPI PC 💻
-
AdoPisoft Official Custom Board 🖥️
-
16GB Sandisk/Strontium SD Card 💾
-
UTP Cable (Cat 6) 🌐
-
TP-Link Omada Eap110 Outdoor 300Mbps 📶
-
Universal Coinslot 💰
-
12V 3A/5A Power Adaptor 🔋
⚠️ Be careful when wiring the boards. Proceed at your own risk. We are not responsible for any damage. ⚡
#pisowifi #diykit #pisowifidiykit #ado #opi #opipc
Pulse Setting:
P20 - 1 pulse
P50 - 2 pulses
P100 - 3 pulses
P200 - 4 pulses
P500 - 5 pulses
P1000 - 6 pulses
If used for DafoxTech. Eloading, ESP32 firmware should be v2 (Fast TP70 reading)
Ideal for e-loading & piso wifi vendo machine
Ideal for Arcade Machine, Vending machine, Game machine
Compact bill acceptor, simple design and exceptional value
Easy to update program
This is the best bill acceptor that can accept over 50 countries' denominations.
WIRINGS:
1 blue wire - bill/credits/pulse
3 in 1 wires - Ground
1 red wire - 12V
Yellow - Inhibit
FEATURES:
1. Bill insertion: 4 Way Acceptance
2. Acceptance Rate: 96% or More
3. Interface: Pulse
4. Power Sources: DC 12 V
7. Brand: TOP TP70, Taiwan
8. Weight: 0.65KG/pcs
🔥IMPORTANT NOTICES🔥
👉We test first the item before we ship.
👉Please make sure to build or test the item within Shopee's Protection Guarantee timeframe so you can return the item back to us (in case for damaged item received) for FREE.
👉Claims after Shopee's Protection Guarantee timeframe will not be honored.
🔔 IMPORTANT REMINDER
A downpayment is required to proceed. You may also choose to fully pay, including shipping, for hassle-free delivery.
Once payment is confirmed, we’ll send the warranty agreement form for e-signature.
📩 Please send your payment screenshot via message to our Official Dafoxtech Kiosk Page (7K+ followers):
👉
✅ Transact only through verified pages with the blue badge checkmark.
⚠️ Orders will not be processed without customer confirmation. Please respond to messages, calls, or send a chat to confirm.
Thank you and we look forward to serving you!
